Cooling System
Air Cooled Type
AMS SERIES
Air Cooled Type

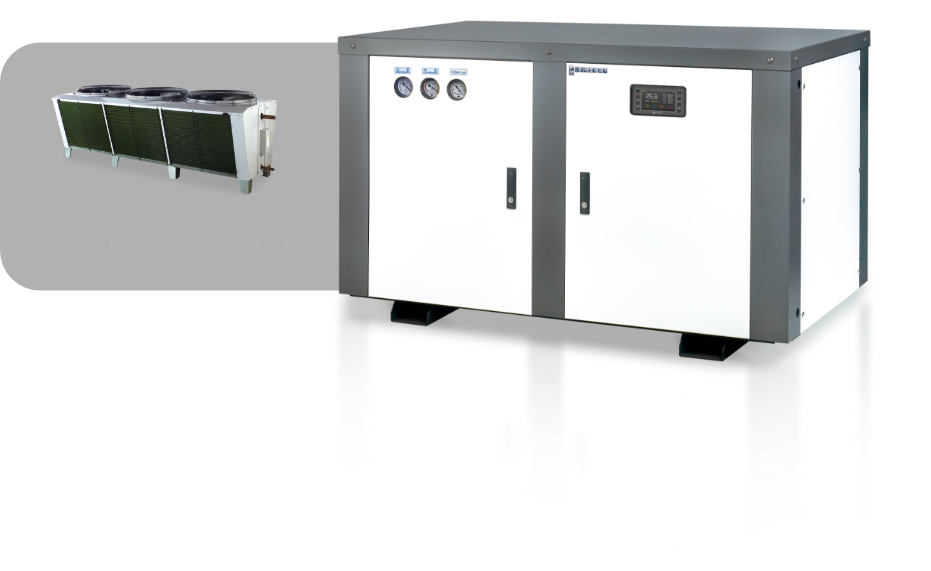

Sauna Chiller
AMS SERIES
The excellent cooling ability, Superior durability, Extending system life by built-in safety devices.
FEATURE
- Preventing degradation of cooling ability when indoor temperature is above 27 degrees, the environment can be comfortable by separating and installing Cooler outside
- For the place of no Ventilation, Less production, and higher heat, separated one is suitable
- It provides us with deliberate temperature and wide range of temperature from 15 degrees to 25 degrees by touching only once
- In terms of simple design and compact size, It is possible to install in the small places
standard Specification
| Model | DH-3AMS | DH-5AMS | DH-7.5AMS | DH-10AMS | DH-15AMS | DH-20AMS | DH-30AMS | DH-40AMS |
|---|---|---|---|---|---|---|---|---|
| Compressor Output (Kw,(HP)) | 2.2(3) | 3.75(5) | 5.5(7.5) | 7.5(10) | 11.25(15) | 15(20) | 22.5(30) | 30(40) |
| Cooling Capacity (at 20℃,(Kcal/h)) |
8,000 | 12,000 | 18,000 | 25,000 | 37,000 | 50,000 | 75,000 | 88,000 |
| Port Size(Inlet/Outlet)(A,(inch)) | 32A(1-1/4”) | 40A(1-1/2”) | 50A(2”) | |||||
| Cooling Medium | Clean Water | |||||||
| Refrigerant | R-22 / R-404A / R-407C | |||||||
| Circulation Pump Output (Kw) | NONE | |||||||
| Evaporator | Shell and Tube Type (STS 304) | |||||||
| Display | Digital Automatic Temperature Control | |||||||
| Water Tank (L) | NONE | |||||||
| Indoor Dimension (LxWxH,(mm)) | 1,000 x 600 x 750 | 1,000 x 600 x 830 | 1,350 x 750 x 840 | 1,600 x 900 x 990 | 2,070 x 900 x 984 | 2,070 x 900 x 992 | ||
| Outdoor Dimension (LxWxH,(mm)) | 700 x 470 x 1,015 | 925 x 855 x 974 | 1,576 x 891 x 809 | 1,756 x 941 x 908 | 2,226 x 904 x 906 | 2,706 x 1,133 x 1,016 | 3,295 x 1,080 x 915 | |
| Total Power Consumption (Kw/h) | 2.7 | 4.15 | 6.35 | 8.3 | 12.25 | 16.5 | 25 | 38 |
| Power (V) | AC 3Φ 220/380/440V 50/60Hz | |||||||
All the details can be changed without any notice with the products developed. (Option : ±0.1℃ temperature control, Ultralow-temperature Chiller(-80℃), Customized order.)
FLOW DIAGRAM
- ACompressor
- BOil Separator
- CAircooled Condenser
- DReceiver Tank
- EFilter Drier
- FSight Glass
- GSolenoid Valve
- HExpansion Valve
- IAccumulator
- JEvaporator
- KWater Supply
- LWater Return
- MDrain Valve
- NDigital Pressure
PURPOSE OF USE
-
- For Sauna’s cold water
-
- Swimming Pool
-
- Ice room
