Cooling & Heating System
Binary Cycle HEAT PUMP
DHB/DHS SERIES
Produce stable high-temperature water by binary cycle method,
Extending system life by built-in safety devices, Saving money on fuel cost.
FEATURE
- It operates to normal without auxiliary heat source in cold weather, 20 degrees below zero
- The heat pump life is expended sharply with built-un perfect safety devices
- It is composed of special material(inside) and paint(outside) not to rust
- By applying anti-vibration device and noise control device, it can be use it conveniently
- It can be check and control all operation conditions with monitor at counter,main room or convenient place
standard Specification
| Model | DHB-15 | DHB-20 | DHB-30 | DHS-20 | DHS-10 | |
|---|---|---|---|---|---|---|
| Performance | Type | 이원 | 농가시설형 | |||
| Heating capacity | 60,000 | 77,000 | 110,000 | 60,000 | 30,000 | |
| Heat storage tank temp (℃) | 70-75 | 55-60 | ||||
| Water outlet temp (℃) | 75-80 | 60-65 | ||||
| Hot water Flow rate (Kg/min) | 165 | 220 | 330 | 200 | 100 | |
| Cooling capacity (Kcal/h) | 42,000 | 56,000 | 70,000 | 56,000 | 28,000 | |
| Compressor | Compressor type | Scroll | ||||
| Heating power consumption (Kw/h) | 30 | 40 | 55 | 20 | 10 | |
| Cooling power consumption (Kw/h) | 15 | 20 | 25 | 20 | 10 | |
| Fan motor | Standard (Φ x kW × P × EA) | 700 × 0.75 × 6 × 2 | 600 × 0.4 × 6 × 3 | 750 × 0.75 × 8 × 3 | 600 × 0.4 × 6 × 3 | 600 × 0.4 × 6 × 2 |
| CMM | 400 | 500 | 750 | 500 | 300 | |
| Water pipe(IN/OUT) | 40A | 50A | 65A | 50A | 32A | |
| Dimension(L × W × H(mm)) | 2,070 × 1,000 × 1,775 | 2,630 × 900 × 1,775 | 3,230 × 1,100 × 2,055 | 2,630 × 900 × 1,775 | 1,770 × 900 × 1,720 | |
| Refrigerant | R-134A/R-410A | R-407C | ||||
| Control of refrigerant(expansion valve type) | Electronic | |||||
| For safety | Negative-phase detection, Over current relay, High & Low pressure switch, Protection of compressor overheat, Freeze protection, Flow switch |
|||||
| Main (V) | 3PH 4-wire 380V/60Hz | |||||
1. Heating Capacity can be changed depend on area in winter season.
2. Power consumption on heting & cooling is maximum power consumption.
※ All the details can be changed without any notice with the products developed

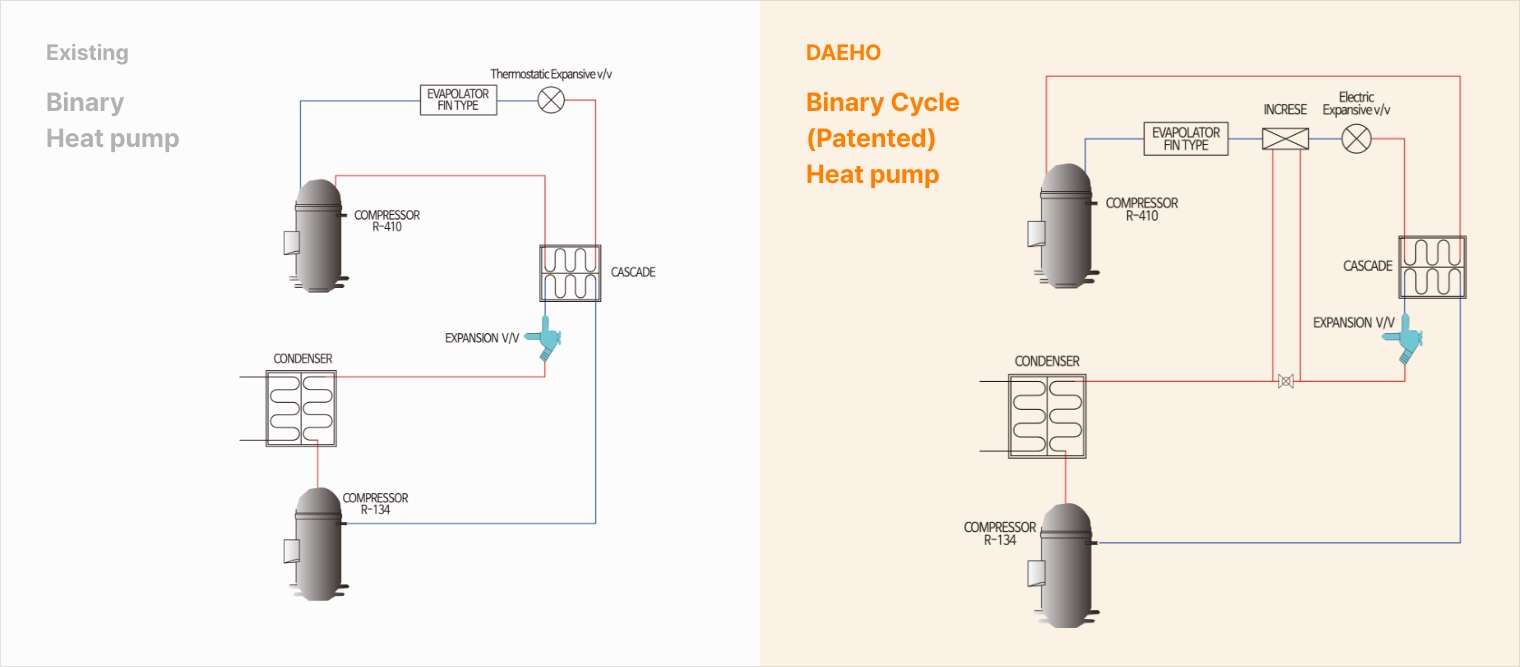

FLOW DIAGRAM
PURPOSE OF USE
-
- Steam baths, Saunas, Steam Rooms, Swimming Pool, Hotels, Motels, Dormitories, Training Centers, Nursing Homes, Pension, Condo, Studio Apartment
-
- Vinyl Greenhouse, Floricultural Pot, Raising Seedlings, Pig Farming, Fish Farm, Churches, Cathedrals, Temples, Prayer House
-
- Hospitals, Schools, Shops, Factories, Office Building
