Cooling System
Air Cooled Type
A SERIES / AM SERIES
Air Cooled Type
Water Chiller
A SERIES / AM SERIES
Air Cooled type is that the refrigerant gas heat generated in process of
condensation is cooled with air by organizating compressor
The excellent cooling ability, Superior durability and precise &
stable Temperature control improve your productivity.
FEATURE
Characteristics
- Possible to check the conditions of Chiller
through LCD Screens - Easily movable with attached wheels
- After blackout, it comes back automatically
A SERIES
- Easily free up installation space cooling tower is unnecessary

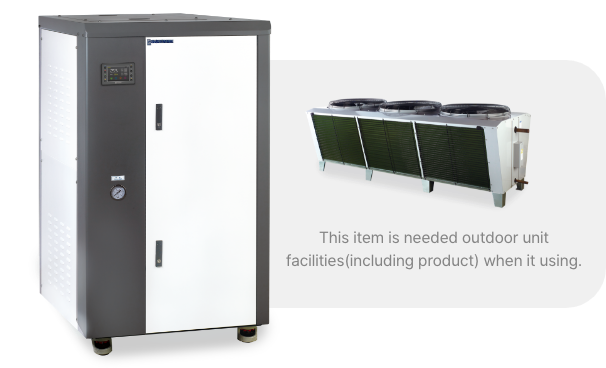

AM SERIES
- Minimize noisy by seperating condenser and indoor system, it prevents degradation of cooling ability caused by increasing the room temperature
- Preventing degradation of cooling ability when indoor temperature is above 27 degrees, the environment can be comfortable by separating and installing Cooler outside
- For the place of no Ventilation, Less production, and higher heat, AM series is suitable
Option
1. Wide temperature Control option(-15 degree~+80 degree)
2. Option for cold and hot water
standard Specification
DH-2AM ~ DH-50AM
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | DH-2AM | DH-3AM | DH-5AM | DH-7.5AM | DH-10AM | DH-15AM | DH-20AM | DH-30AM | DH-40AM | DH-50AM |
| Compressor Output (Kw,(HP)) | 1.5(2) | 2.25(3) | 3.75(5) | 5.6(7.5) | 7.5(10) | 11.2(15) | 15(20) | 22.5(30) | 30(40) | 37.5(50) |
| Cooling Capacity (at 20℃,(Kcal/h)) |
5,600 | 8,400 | 14,000 | 21,000 | 28,000 | 42,000 | 56,000 | 84,000 | 112,000 | 140,000 |
| Port Size(Inlet/Outlet)(A,(inch)) | 25A(1") | 40A(1-1/2") | 50A(2") | |||||||
| Cooling Medium | Water, Antifreeze, D.I water, Distilled water | |||||||||
| Refrigerant | R-22 / R-404A / R-407C | |||||||||
| Weight (Kg) | 110 | 150 | 250 | 290 | 430 | 530 | 680 | 830 | 930 | 1,100 |
| Circulation Pump Output (Kw) | 0.75 | 1.85 | 3 | |||||||
| Pump Head (M) | 30 | 28 | ||||||||
| Pump Flow Rate (L/min) | 75 | 150 | 300 | |||||||
| Display | Digital Automatic Temperature Control | |||||||||
| For safety |
Low water level, High/Low pressure, High/Low temperature, Overload, Phase detection, Prevent of over-cooling/over-heating, Anti freeze, Water flow sensor(option) |
|||||||||
| Water Tank (L) | 55 | 110 | 140 | 170 | 250 | 300 | 450 | 550 | 650 | |
| Indoor Dimension (LxWxH,(mm)) |
780 x 605 x 1,080 |
780 x 605 x 1,080 |
850 x 665 x 1,280 |
1,310 x 760 x 1,350 |
1,500 x 800 x 1,450 |
1,745 x 900 x 1,550 |
1,981 x 950 x 1,773 |
2,230 x 1,100 x 1,773 |
||
| Outdoor Dimension (LxWxH,(mm)) |
700 x 470 x 520 |
700 x 470 x 1,015 |
925 x 855 x 974 |
1,346 x 800 x 712 |
1,576 x 890 x 810 |
1,756 x 941 x 910 |
2,225 x 901 x 910 |
2,706 x 1,133 x 915 |
3,297 x 1,090 x 915 |
|
| Total Power Consumption (Kw/h) | 2.5 | 3.3 | 4.9 | 6.8 | 10.2 | 15 | 18 | 27 | 37 | 48 |
| Power (V) | AC 3Φ 220/380/440V 50/60Hz | |||||||||
All the details can be changed without any notice with the products developed. (Option : ±0.1℃ temperature control, Ultralow-temperature Chiller(-80℃), Customized order.)
FLOW DIAGRAM
- ACompressor
- BOil Separator
- CAircooled Condenser
- DReceiver Tank
- EFilter Drier
- FSight Glass
- GSolenoid Valve
- HExpansion Valve
- IAccumulator
- JWater Tank & Senser
- KEvaporator
- LCity Water Supply
- MWater Return
- NWater Supply
- OWater Gauge
- PBy-Pass Valve
- QCirculation Pump
- RDrain Valve
- SDigital Pressure
PURPOSE OF USE
-
- Machine Tool Industry CNC lathe, Machining Center, Cutter, Bending machine, Boring machine, Grinding machine, Injection machine, Milling machine
-
- Parts/Materials Industry Automotive, Mobile phone, New materials, Raw materials, Display, Chemical, Electronics, Pulp, Textile, Plastic
-
- Air Conditioning Industry Building, Resort, Sports Center, Nursing Home, Hotel, Airport, School, Swimming Pool, Hospital
-
- Machinery Presse, Plants, Construction, Medical devices, Food processing, Packaging, Paper, Electricity
