Hydraulic
DEMOLITION ATTACHMENT
It is the ultimate construction equipment attachment tailored to domestic and international job needs and environments.
It can be mounted on excavators for construction sites and earthwork operations, adapting to various terrain and conditions
Compaction for construction purposes
Compaction of ground and slopes for road construction and foundation works
COMPACTOR
Specification

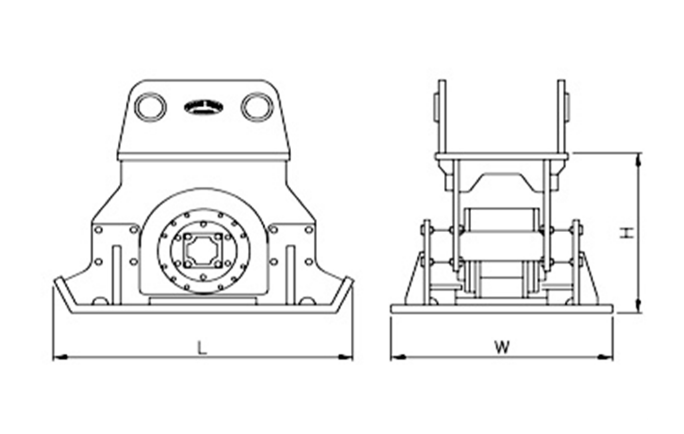

Drawing
| Specification | Unit | HL50CT | HL80CT | HL120CT | HL210CT | HL280CT |
|---|---|---|---|---|---|---|
| Operating Weight | kg (lbs) | 350 (66) | 543 (1197) | 644 (1419) | 1060 (2336) | 1150 (2535) |
| Length (L) | mm (in) | 900 (35.4) | 950 (37.4) | 1160 (45.6) | 1350 (53.1) | 1350 (53.1) |
| Width (W) | mm (in) | 550 (21.6) | 550 (21.6) | 700 (27.5) | 900 (35.4) | 900 (35.4) |
| Height (H) | mm (in) | 540 (21.2) | 644 (25.3) | 676 (26.6) | 730 (28.7) | 730 (28.7) |
| Oil Flow Requirement | I/min (gpm) | 45~65 (11.8~17.1) | 50~70 (13.2~18.4) | 80~110 (21~29) | 120~170 (31.6~44.8) | 150~200 (39.6~52.8) |
| Operating Pressure | kg/㎠ (psi) | 100~170 (1422~2417) | 120~180 (1706~2560) | 150~210 (2133~2986) | 170~220 (2417~3129) | 170~220 (2417~3129) |
| Impulse Force | ton | 4 | 6 | 7.5 | 15 | 15 |
| Frequency | rpm | 1800 | 1800 | 1800 | 2000 | 2000 |
| Applicable Excavator | ton (ibs) | 4~5 (8960~11200) | 6~10 (13440~22400) | 13~16 (29120~35840) | 18~25 (40320~56000) | 28~33 (62720~73920) |
Above specifications are subject to change without notice
