Hydraulic
DEMOLITION ATTACHMENT
It is the ultimate construction equipment attachment tailored to domestic and international job needs and environments.
It can be mounted on excavators for construction sites and earthwork operations, adapting to various terrain and conditions
Metal waste disposal
Collection and transportation of scrap metal
MAGNET-SCRAP TYPE
Specification

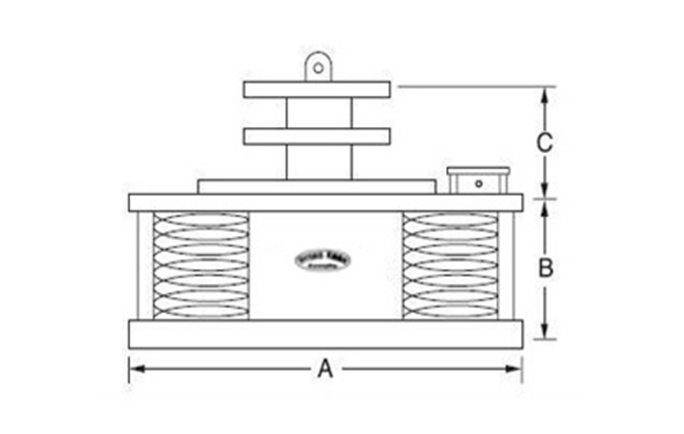

Drawing
| Specification | Unit | HL700MC | HL900MC | HL1000MC | HL1100MC | |
|---|---|---|---|---|---|---|
| Operating Weight | kg (lbs) | 500 (2202) | 600 (1322) | 1800 (3968) | 1800 (3968) | |
| Dimension | A | mm (in) | 700 (27.5) | 900 (35.4) | 1000 (39.3) | 1100 (43.3) |
| B | mm (in) | 280 (11) | 280 (49.2) | 280 (11) | 310 (12.2) | |
| C | mm (in) | 250 (9.84) | 250 (9.84) | 250 (9.84) | 250 (9.84) | |
| Capacity | Iron plate | kg (ibs) | 5000 (11023) | 9000 (19841) | 12000 (26455) | 14000 (30864) |
| Billets | 350 (771) | 5000 (1102) | 700 (1543) | 900 (1984) | ||
| Scarp | 200 (440) | 300 (661) | 400 (881) | 500 (1102) | ||
| Current | A | 28 | 42~50 | 61 | 61 | |
| Power Consumption | Kw | 6.2 | 9.2~11 | 13.4 | 13.4 | |
| Voltage | V | 24 | 24 | 24 | 24 | |
| Applicable Excavator | ton (Ibs) | 17~20 (38080~44800) | 20~25 (44800~56000) | 28~30 (62720~67200) | ||
Above specifications are subject to change without notice
