• Excellent for automated logistics transfer within the production site
• Customization support for field conditions
• Supports an upper system suitable for operating method

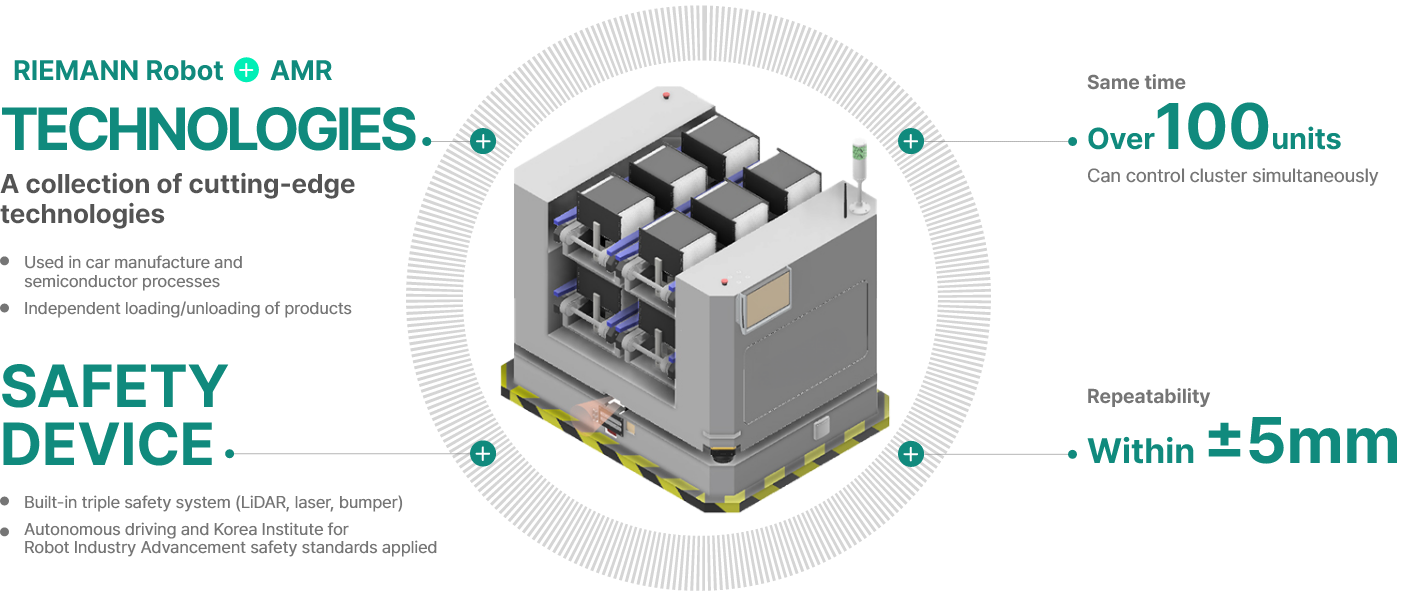

• Fast and precise docking (5sec, ±5mm)
• Battery replacement system for around-the-clock operation
• Latest software system using ROS2
 |
|||

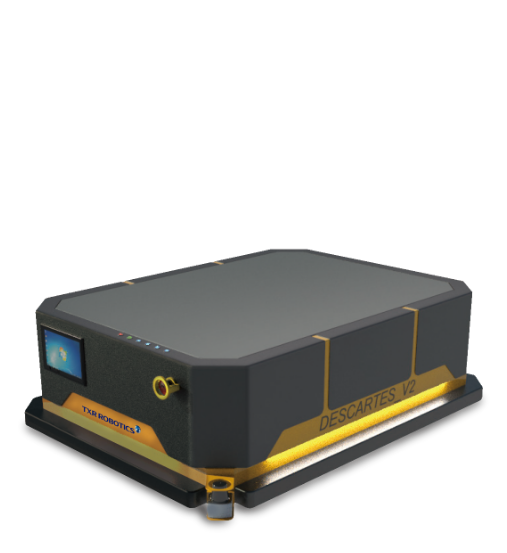

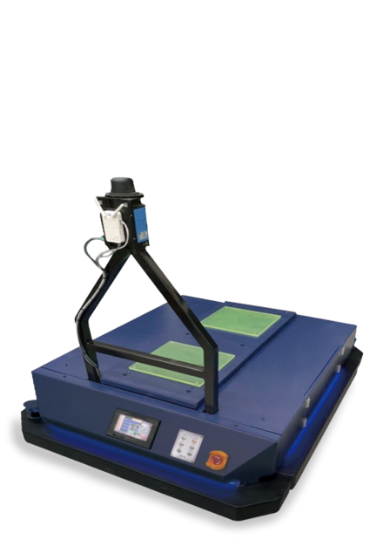

| Model | DESCARTES-C1 | DESCARTES-C2 | DESCARTES-L1 |
| Load capacity(Kg) | 1,500 | 2,500 | 4,000 |
| Conveyor Spec | - | - | - |
| Dimensions(W x L x H) (mm) | 1700 x 440 x 250 | 1700 x 440 x 300 | 1800 x 1200 x 500 |
| Guide patch | Magnetic tape guide (Course seach when AGV starts) | ||
| Minimum turing radius | 750mm R - 180° TURN | ||
| Power supply | 24V DC | ||
| Speed | Max 45 m/min | ||

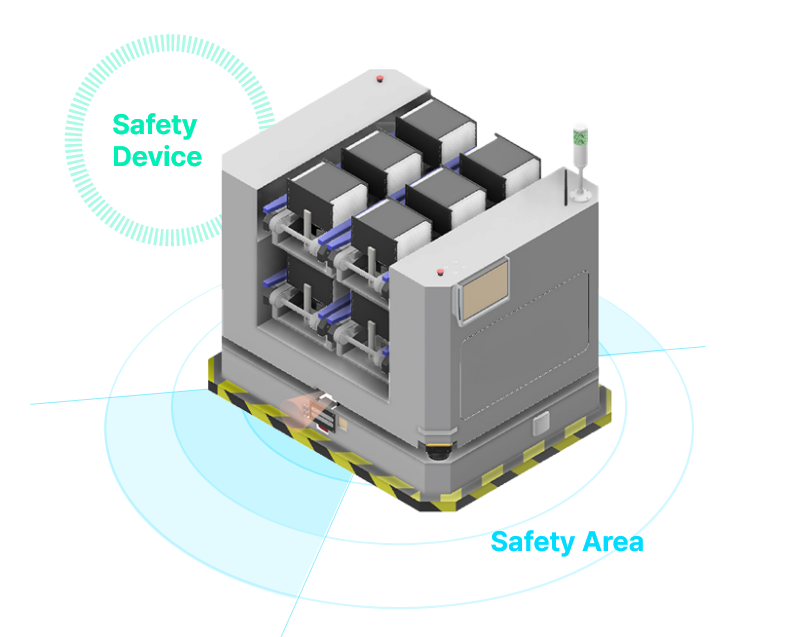

| Safety systems | Audible warning, Lidar Sensor, Flashing light, e-stop, Bumper | ||
| Control method | Magnetic command tapes | ||
| Usage conditions | Indoor only, 0-40℃, 30~80% humidity - no dew point | ||
| Floor conditions | Surface roughness 10mm or less between min.&max. height Slope 1% or less | ||
 |
 |
 |
|

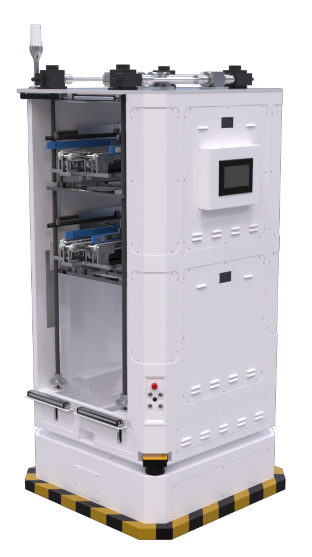

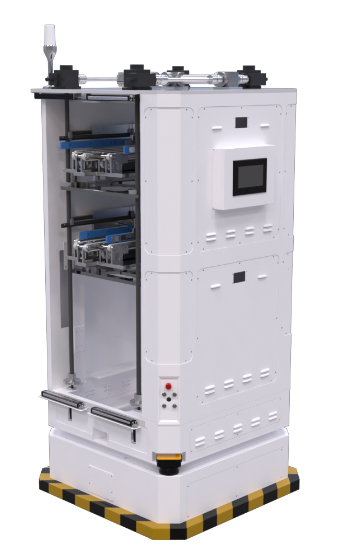

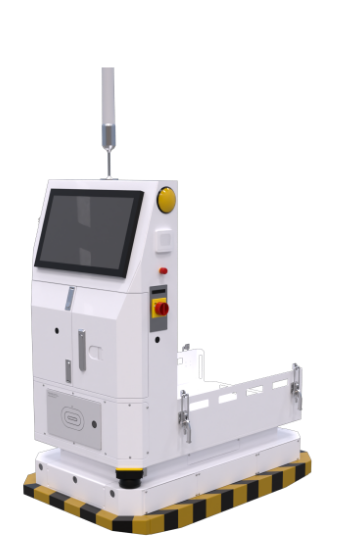

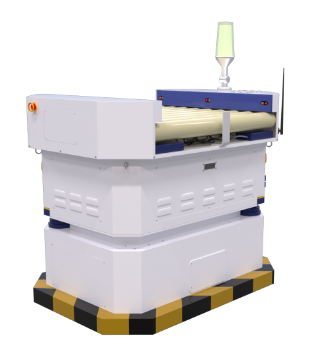

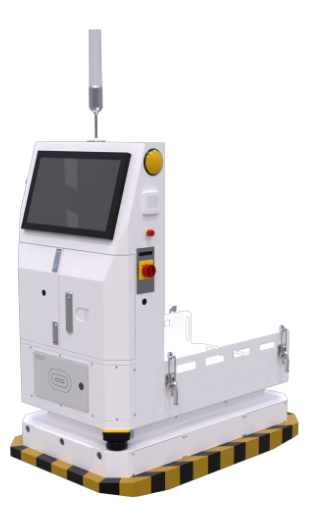

| Model | DESCARTES-C1 | DESCARTES-C2 | DESCARTES-L1 |
| Load capacity(Kg) | 300 | 500 | 300 |
| Conveyor Spec | 12m/min (Adjustable) | 12m/min (Adjustable) | - |
| Dimensions(W x L x H) (mm) | 850 x 700 x 800 | 1030 x 1300 x 655 | 745 x 1200 x1400 |
| Guide patch | Slam Laser guide | ||
| Minimum turing radius | 540mm R, 360˚ TURN | 700mm R - 360° TURN | 665mm R, 360˚ TURN |
| Power supply | 48V DC | ||
| Speed | Max 60 m / min | Max 48 m / min | Max 48 m / min |
| Safety systems | Lidar Sensor, E-stop, Bumper S/W | ||
| Control method | PLC + PC CONTROL | Using vision sensor : WITHIN ±3mm | PLC + PC CONTROL |
| Usage conditions | Indoor only, 0-40℃, 30~80% humidity - no dew point | ||
| Floor conditions | Surface roughness 10mm or less between min.&max. height Slope 5% or less | ||
| Positioning accuracy | Using vision seneor : WITHIN ±3mm | ||
