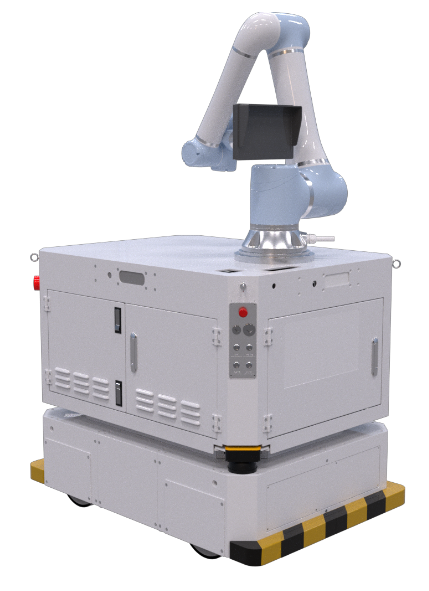

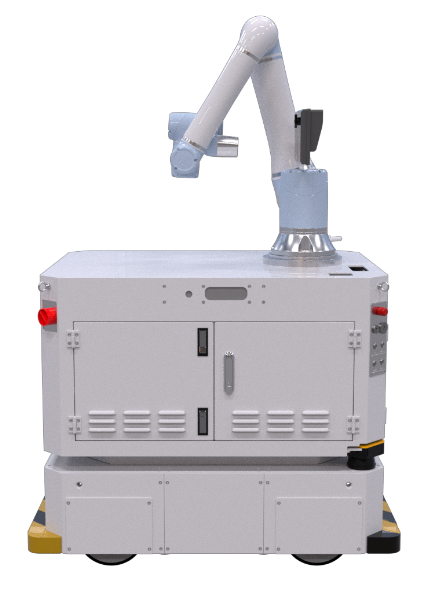

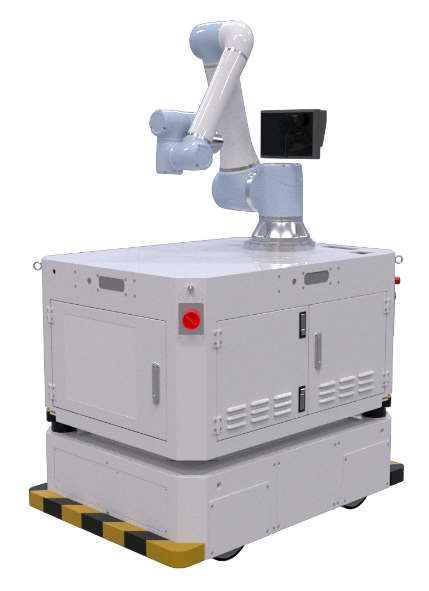

• Collaborative robot-mounted mobile manipulator
• Automatically perform repetitive tasks on behalf of the operator
• Safety certification in workplaces with collaborative robots
• Smooth and soft route driving
• Fast and precise docking (5 sec, ±5 mm)
• Battery replacement system for around-the-clock operation
• Latest software system using ROS2
| Model | Gong Jang Jang |
|---|---|
| Load capacity | 300kg |
| Robot | TM 14M (14kg Robot) - OPTION |
| Dimensions(W x L x H) | 1100 x 750 x 870mm (Customizable) |
| Guide type | Slam Laser Guide |
| Minimum turing radius | 650mm R - 360° TURN |
| Power supply | 48V DC |
| Speed | Max 60 m / min |

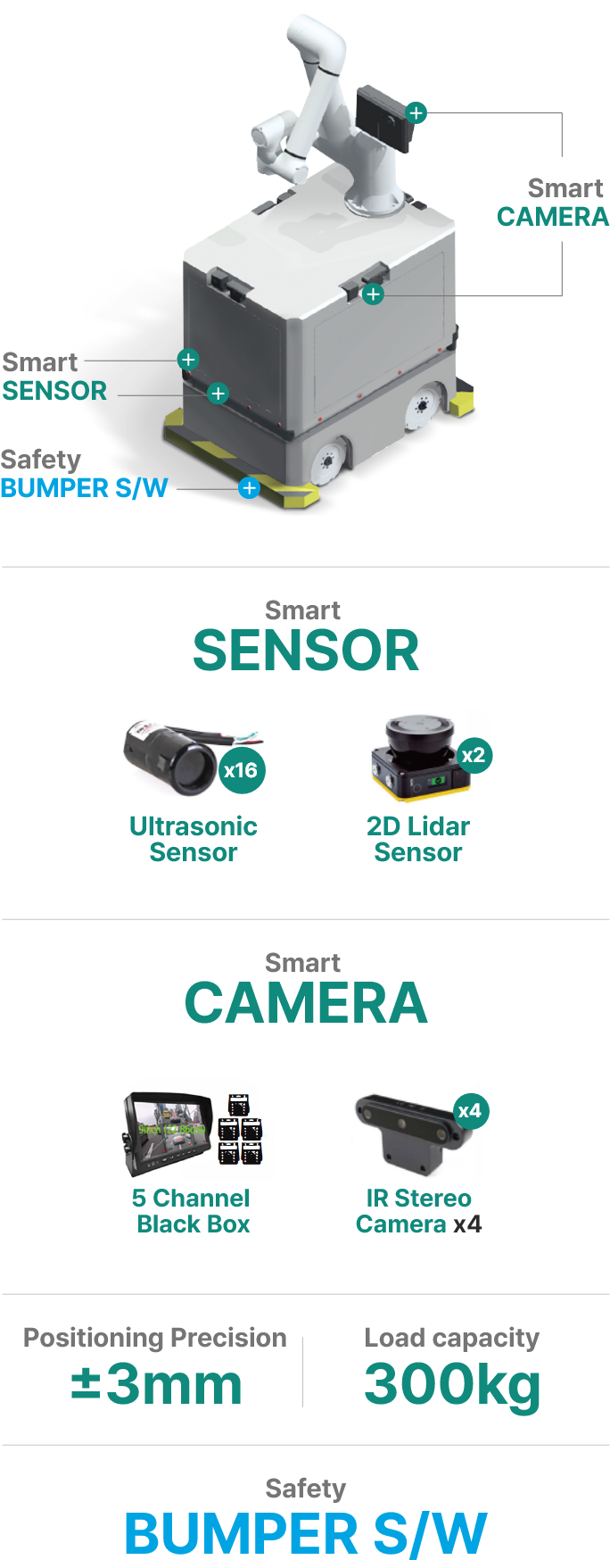

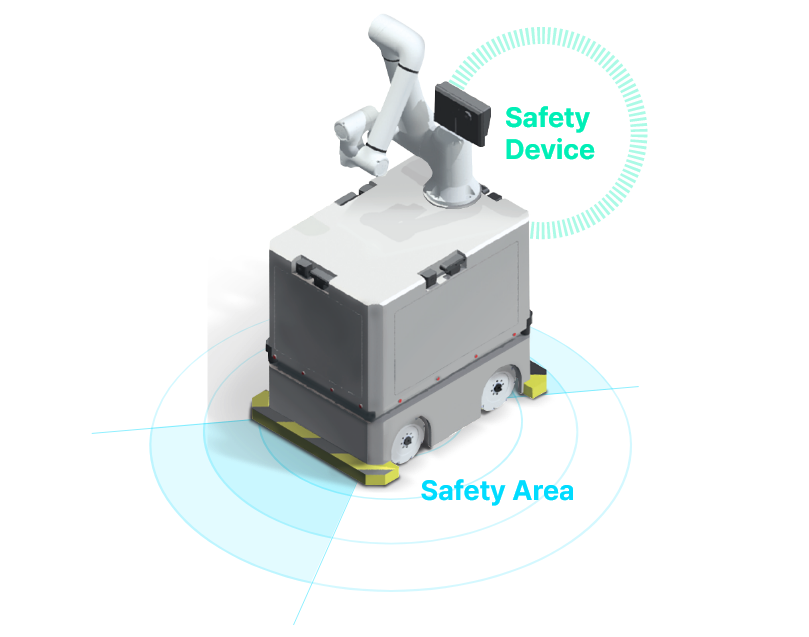

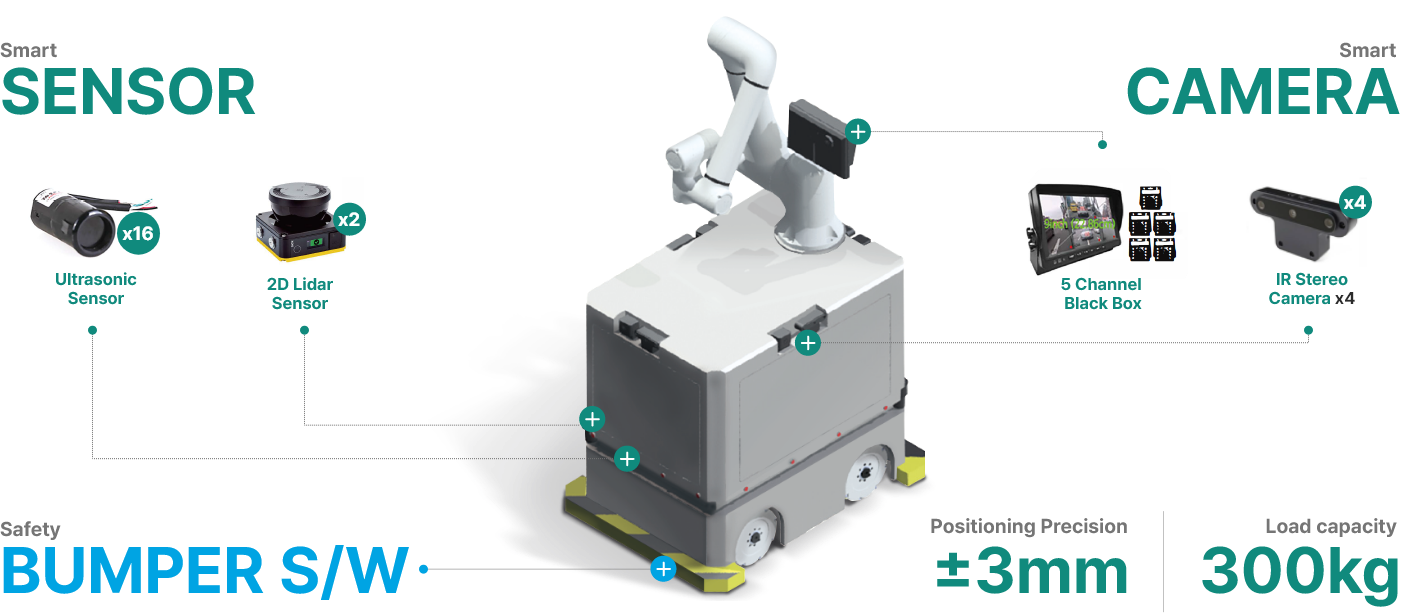

| Safety systems | Lidar Sensor, e-stop, Bumper S/W, Black Box, Ultrasonic Sensor, Depth Camera |
| Control method | PC Control (ROS2 as source) |
| Usage conditions | Indoor only, 0-40℃, 30~80% humidity - no dew point |
| Floor conditions | Surface roughness 10mm or less between min.&max. height Slope 5% or less |
| Positioning accuracy | Using vision sensor : Within ±3mm |
