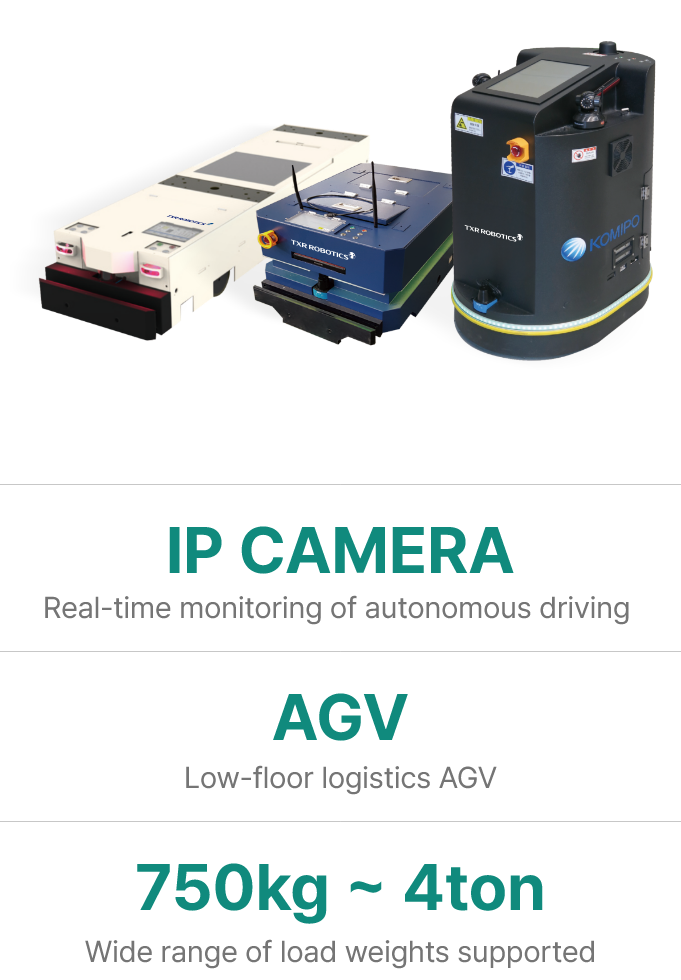

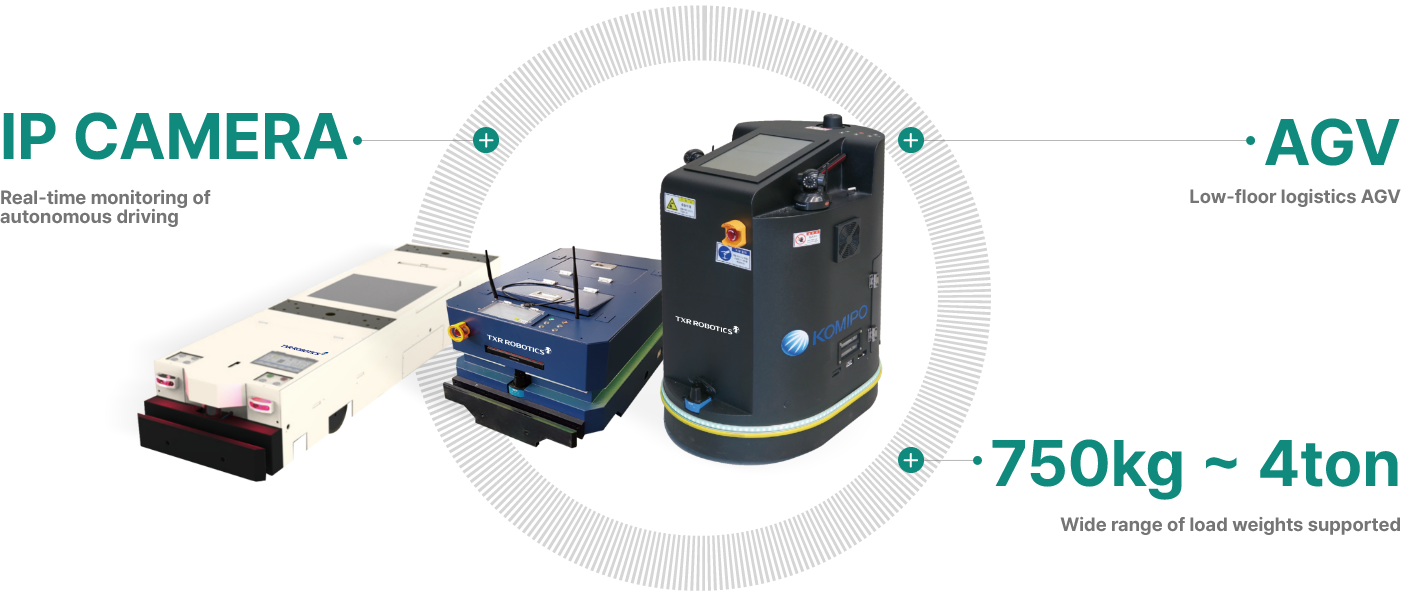

Robot Automation Solution ONESTAR
• DD(Differential Drive) system
• Magnet guide, QR code, and laser guide operation
FEATURE
ONESTAR
Specification
 |
|||
| Model | ONESTAR-07 | ONESTAR-15 | ONESTAR-25 |
| Load capacity(Kg) | 700 | 1,500 | 2,500 |
| Dimensions(W x L x H) (mm) | 1700 x 440 x 170 | 1700 x 440 x 250 | 1700 x 440 x 300 |
| Guide patch | Magnetic tape guide (Course search when AGV starts) | ||
| Minimum turing radius | 750mm R-180˚ TURN | ||
| Power supply | 24V DC | ||
| Speed | Max 45 m/min | ||
| Safety systems | Audible warning, Lidar sensor, Flashing light, E-stop, Bumper | ||
| Control method | Magnetic command tapes | ||
| Usage conditions | Indoor only, 0-40℃, 30-80% humidity - no drew point | ||
| Floor conditions | Surface roughness 10mm or less between min.&max. height Slope 5% or less | ||
 |
 |
|||
| Model | ONESTAR-M-15 | ONESTAR-M-25 | ONESTAR-M-40 | ONESTAR-L |
| Load capacity(Kg) | 1,500 | 2,500 | 4,000 | 300 |
| Dimensions(W x L x H) (mm) | 1000 x 600 x 440 | 1200 x 650 x 450 | 1200 x 700 x 550 | 900 x 680 x 1200 |
| Guide patch | Magnetic tape guide (Course search when AGV starts) | Slam laser guide | ||
| Minimum turing radius | 500mm R-180˚ TURN | 450mm R-360˚ TURN | ||
| Power supply | 24V DC | 24V DC | ||
| Speed | Max 45 m/min | Max 40 m/min | ||
| Safety systems | Audible warning, Lidar sensor, Flashing light, E-stop, Bumper | Lidar sensor, Flashing light, E-stop, Bumper |
||
| Control method | Magnetic command tapes | PLC Control | ||
| Functions | - | Air quality detection, Remote video surveillance, Remote sector patrol, Integrated control monitoring |
||
| Usage conditions | Indoor only, 0-40℃, 30-80% humidity - no drew point | |||
| Floor conditions | Surface roughness 10mm or less between min.&max. height Slope 5% or less | |||
