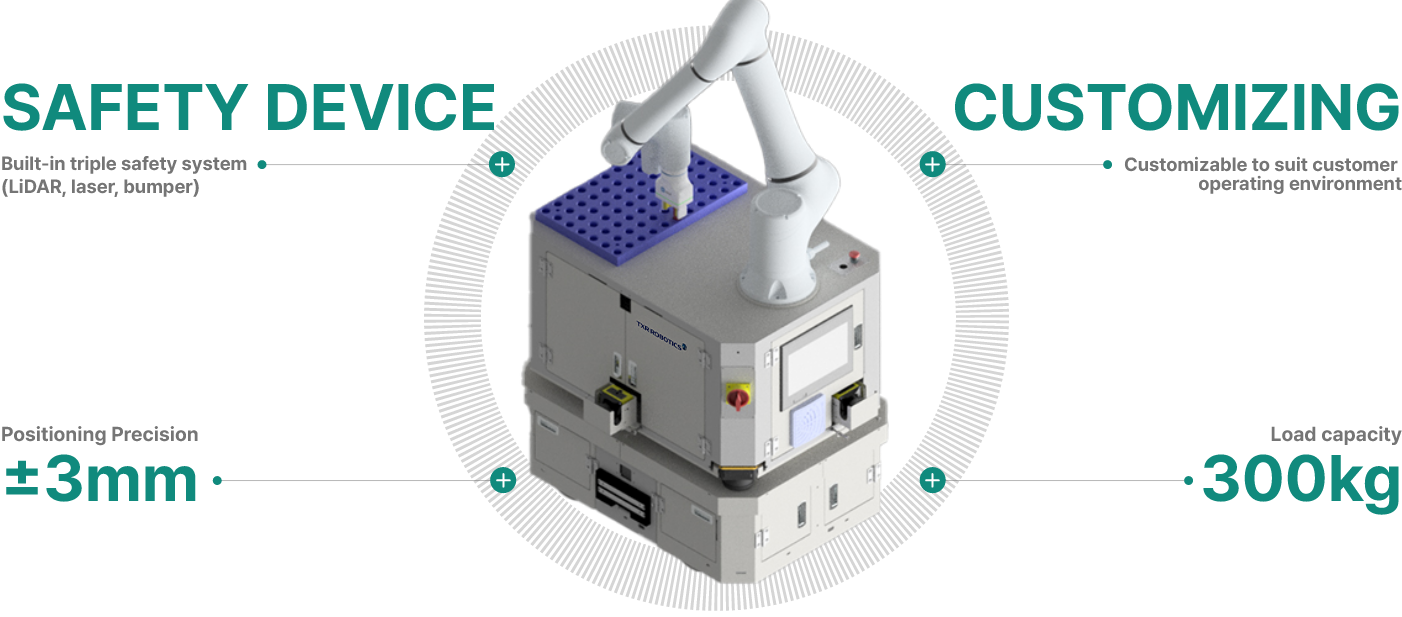

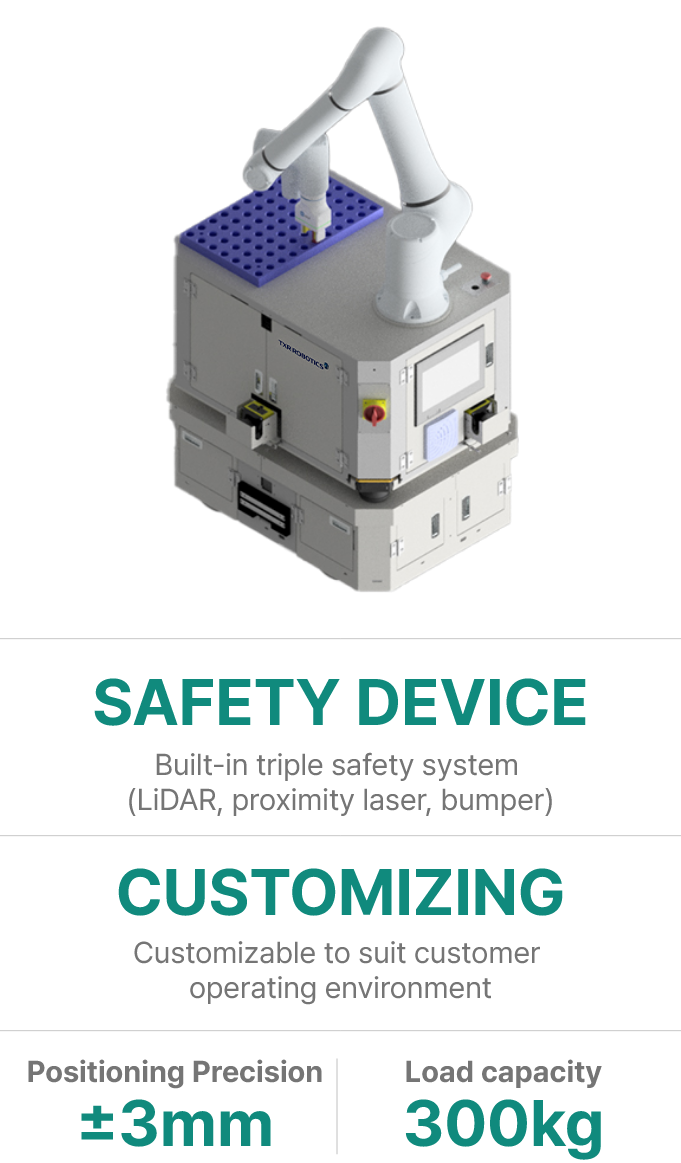

• Collaborative robot-mounted mobile manipulator
• Automated replacement of workers in repetitive activities
• Safety certification of workplaces with collaborative robots
• Smooth movement along set routes
• Fast and precise docking (5sec, ±5mm)
• Route control by PLC
| Model | RIEMANN |
|---|---|
| Load capacity | 300 kg |
| Conveyor Spec | 7.5m / min (Adjustable) |
| Dimensions(W x L x H) | 950 x 950 x 1990mm |
| Guide type | Slam Laser guide |
| Minimum turing radius | 835mm R, 360˚ TURN |
| Power supply | 48V DC |
| Speed | Max 48m/min |
| Safety systems | Lidar Sensor, e-stop, Bumper S/W |
| Control method | PLC + PC CONTROL |
| Usage conditions | Indoor only, 0-40℃, 30~80% humidity - no dew point |
| Floor conditions | Surface roughness 10mm or less between min.&max. height Slope 1% or 5% |
| Positioning accuracy | Using vision sensor : Within ±3mm |
