Robot Automation Solution Lifting Smoke Exhaust
Fire Fighting Robot Lifting Smoke Exhaust
Fire Fighting Robot

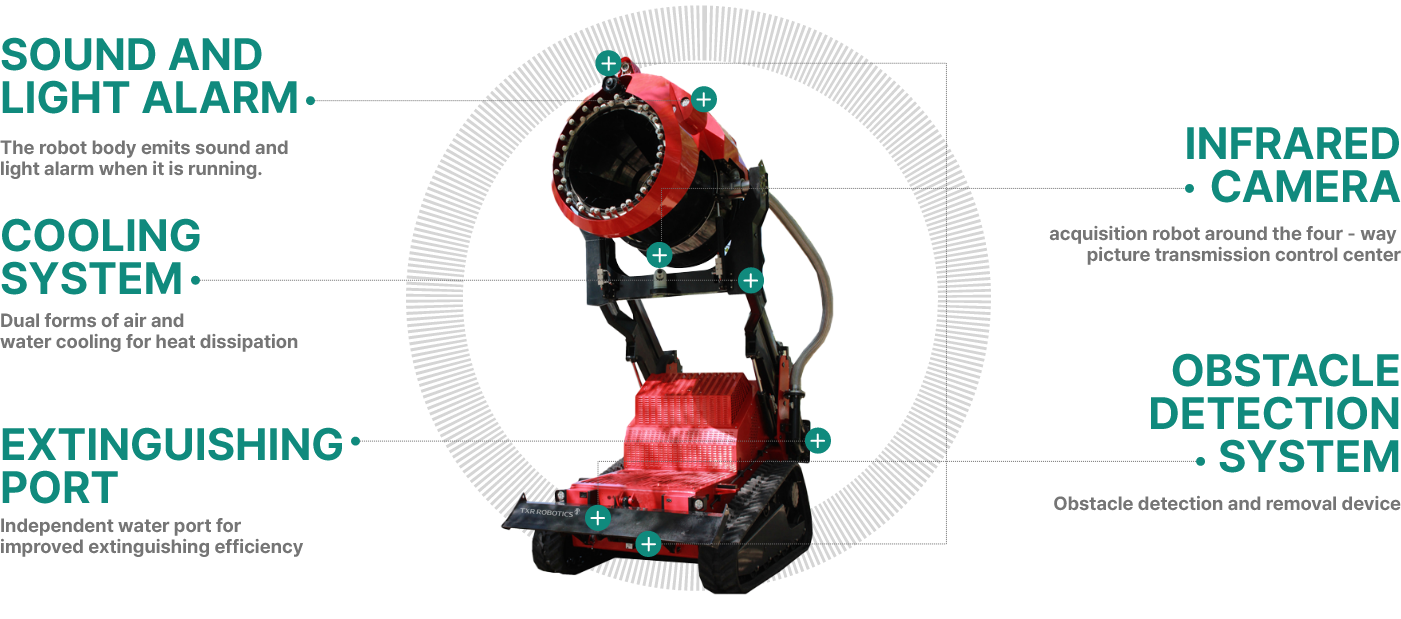

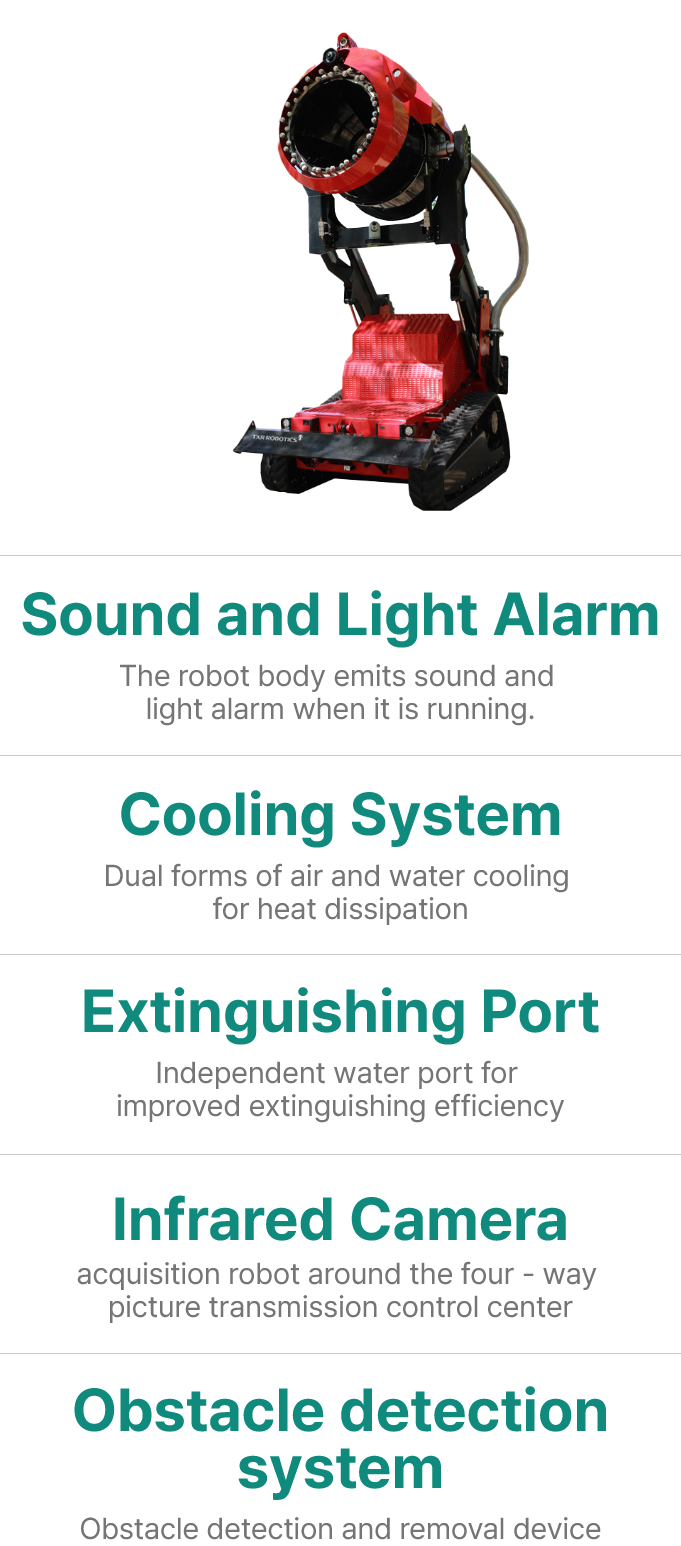

The lifting smoke exhaust fire extinguishing robot is an intelligent multifunctional fire robot with functions such as smoke exhaust, fire extinguishing, air supply, cooling, dust removal, obstacle clearance, environmental detection, image acquisition, wireless information transmission, and climbing obstacles to handle various accidents safely and efficiently instead of firefighters.


• Remote supervision and diagnostic
• Real time monitoring
• Automatic spray cooling system
• Exhaust system with powerful hydraulic fan
• Independent water port for improved extinguishing efficiency
• Obstacle detection and removal device

Contact Us

FEATURE

Specification

Model Lifting Smoke Exhaust Fire Fighting Robot
Dimensions(W x L x H)(mm) <3300 x 1900 x 3000
Weight <5300 kg
Speed >1.5m/s
Control mode Wireless control
Remote control 1000m
Vibration system Metal spring+high-pressure oil cylinder shock absorption
Climbing angle 35°
Tilt stability angle >30°
Traction force >26KN
Max obstacle crossing >250mm
Braking distance <0.3m
Linear deviation <3%
The Frontend and backend of the robot body are equipped with fixed cameras, and the front air cannon is equipped with follow-up cameras



Air suction power
Exhaust air volume >100000 m³/h
Water mist flow rate >8 L/s
Pitch angle ≤-10°, >60°
Lifting height of smoke exhaust fan >1.5 m

Application
